Ultra DMX Control Station

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

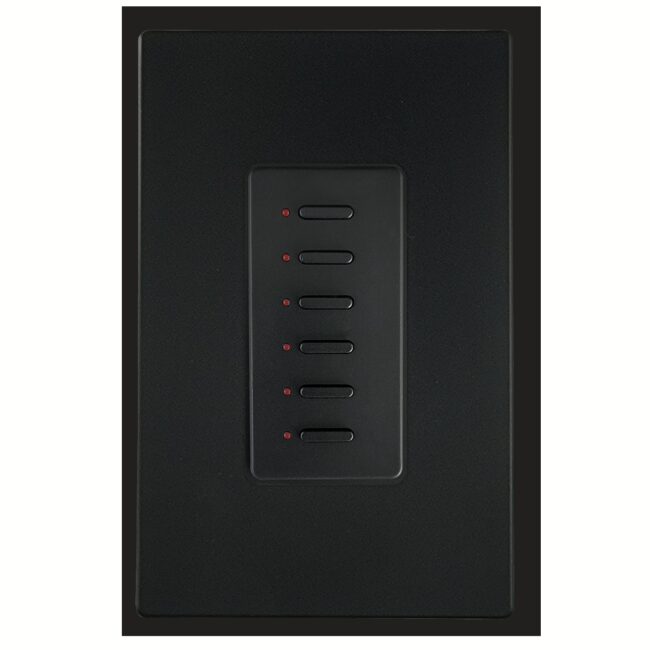

Ultra DMX Control Station

SKU: ULTS1-0X0XD-XXX

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

Contact For Pricing

Must be powered with isolated Class 2 power supply. Shield or ground must be isolated from the ground on the power supply.
Replacement for Part #(s): ULT-XB-XL-XXX-D-SS

Overview

Documentation

The Ultra DMX Control Station is one of our native DMX low-voltage switch solutions. Designed to be a simple and cost-effective solution used in custom or pre-existing lighting control systems, integrators can benefit from the ability to work with DMX.

Touch-Plate Model #: ULTS1-0X0XD-XXX

Features

Colors available: White, Ivory, Light Almond, and Black
Button configurations available: 1, 2, 3, 4 5 & 6 (Per Gang - Multi-gang Available)
Selectable LED colors: Green, Red, Blue, Yellow, Purple, Cyan, and White
Standard Decora Coverplate

Benefits

Simple DMX Master
Designed to provide simple DMX control to DMX lights (on/off or up/down)

Common Applications

Commericial or Residential applications seeking simple DMX control.

Documentation

Sales Sheets:

Ultra DMX Sales Sheet
Ultra DMX Sales Sheet

Technical Documents:

Ultra DMX Wiring Guide
Ultra DMX Wiring Guide
Ultra DMX 2 Button 2 LED Dimensional Drawing
Ultra DMX 2 Button 2 LED Dimensional Drawing
Ultra DMX 4 Button 4 LED Dimensional Drawing
Ultra DMX 4 Button 4 LED Dimensional Drawing
Ultra DMX 6 Button 6 LED Dimensional Drawing
Ultra DMX 6 Button 6 LED Dimensional Drawing

Engraving Templates:

Ultra 1 Button Engraving Template
Ultra 1 Button Engraving Template
Ultra 2 Button Engraving Template
Ultra 2 Button Engraving Template
Ultra 3 Button Engraving Template
Ultra 3 Button Engraving Template
Ultra 4 Button Engraving Template
Ultra 4 Button Engraving Template
Ultra 5 Button Engraving Template
Ultra 5 Button Engraving Template
Ultra 6 Button Engraving Template
Ultra 6 Button Engraving Template

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ULTS1-0X0XD-XXX
Direct Replacement for Part #(s): ULT-XB-XL-XXX-D-SS

Product Details:

Product Type: DMX Wall Switch
Product Color: AlmondBlackIvoryWhite
Gang Configuration: 1-Gang (Single)
Signal Configuration: DMX
Product Material: Painted Plastic Coverplate
LED Indicator Color: Multicolor -
# of Buttons: 1-Button2-Button3-Button4-Button5-Button6-Button
Included in Box: Complete Unit (Switch, Cover, Screws)

Product Dimensions:

Height: 4.88 in.
Width: 3.125 in.
Depth: 0.549 in.

Button Dimensions:

Height: 0.1 in.
Width: 0.435 in.

Technical Information:

Wire Type: 16 AWG, 2C, Unshielded
LED Voltage Range: 12-24VAC/VDC
Switching: • DMX Wall Switch
•
•
Power Input: • 12-24VAC/VDC
•
Contact Type: Dry contact
